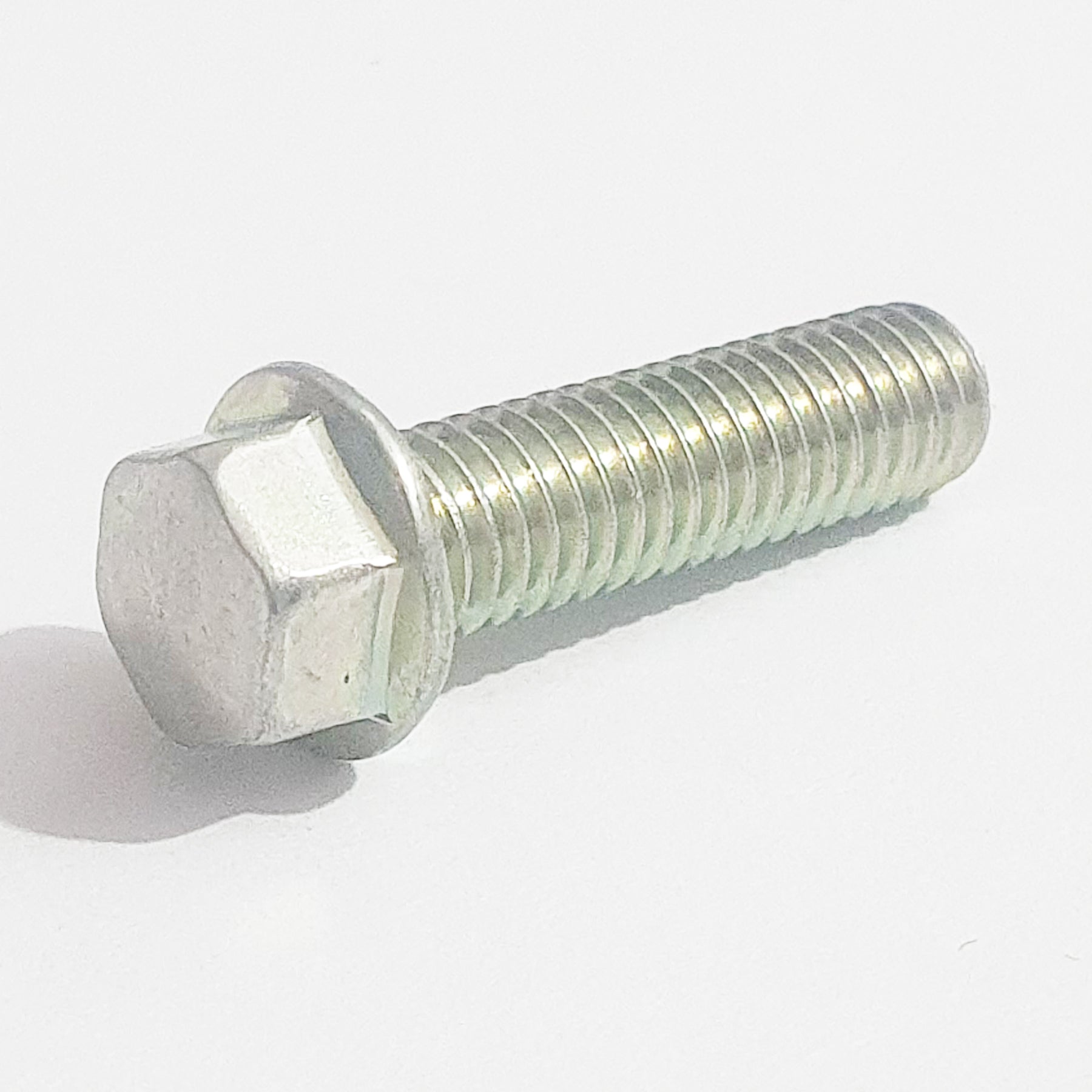

M6x22 Small Head Flanged Bolt Trivalent White JIS 132B0622

M6x22 Small Head Flanged Bolt Trivalent White JIS 132B0622

£0.46 GBP
£0.46 GBP
Sale Sold out
Shipping calculated at checkout.

132B0622 M6x22 Small Head Flanged Bolt Trivalent White JIS

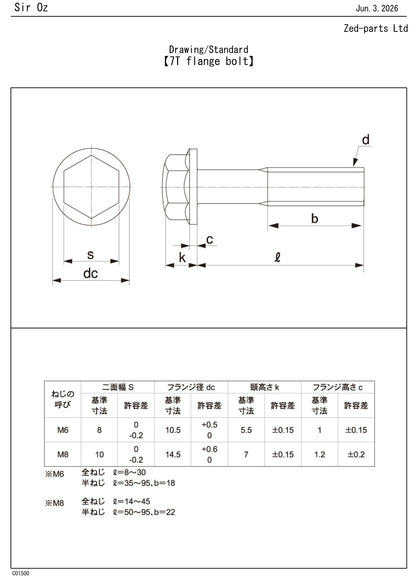

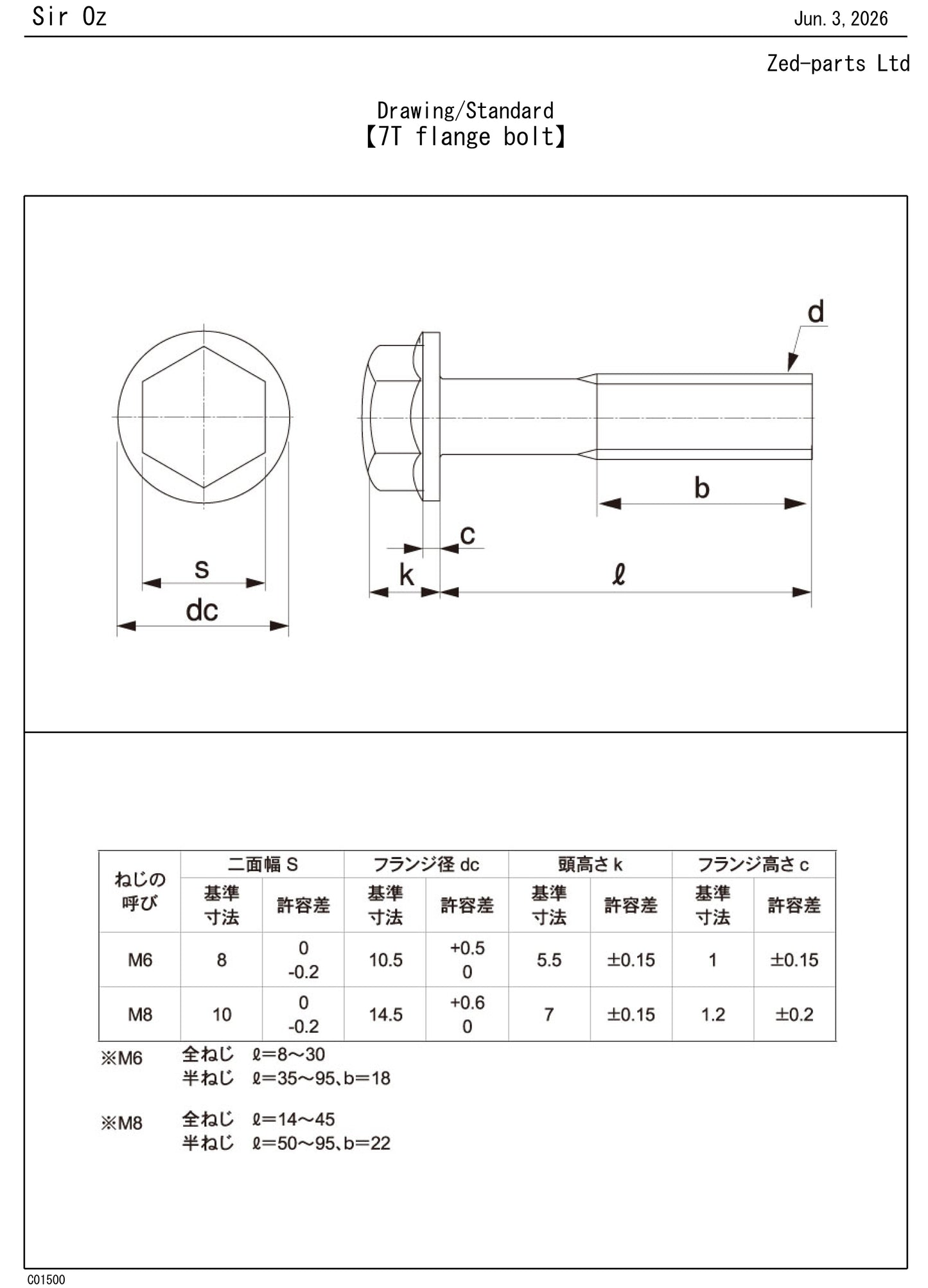

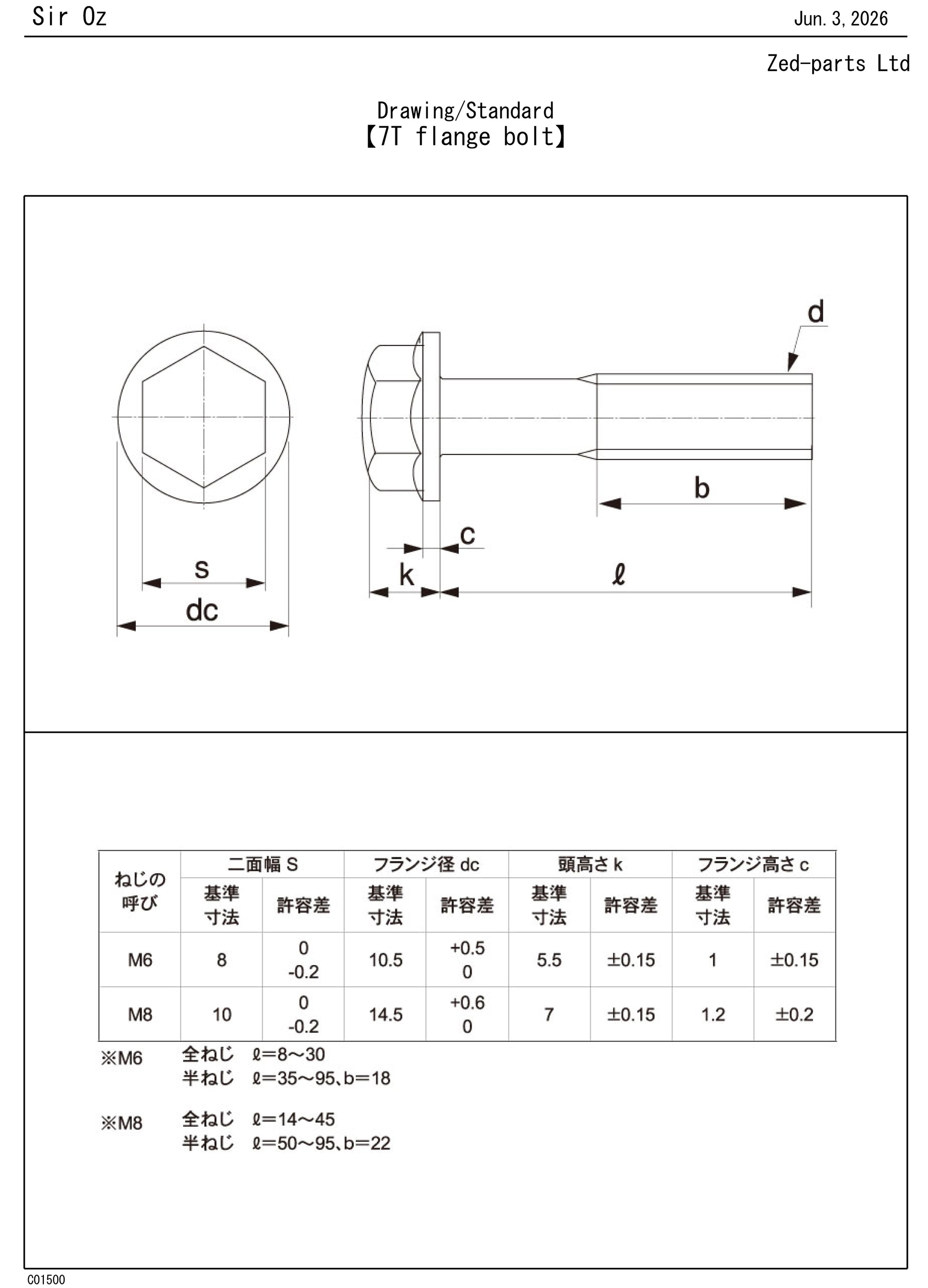

Head size M8
Head Thickness 5.5mm +/- 0.15mm
Flanges Dia 10.5 +0.5mm/-0mm
Flanges Thickness 1mm
Thread length 8-30mm full thread
Thread length 35-95mm =18mm
