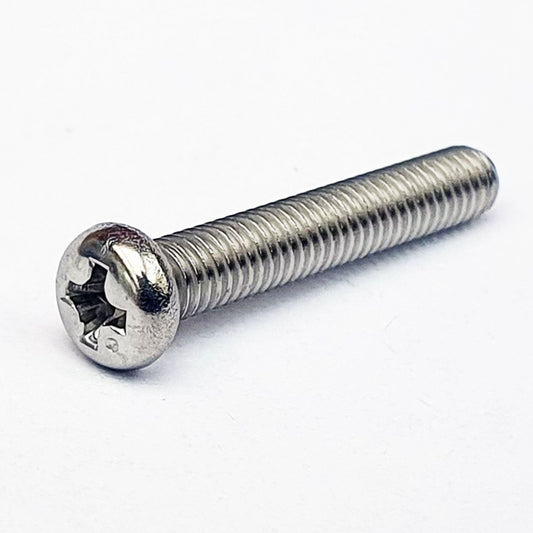

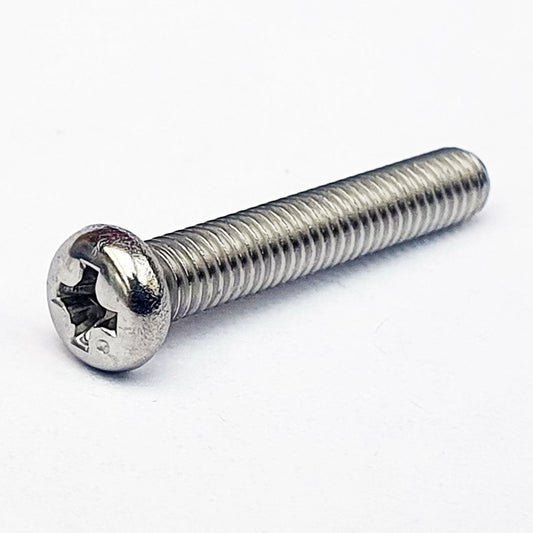

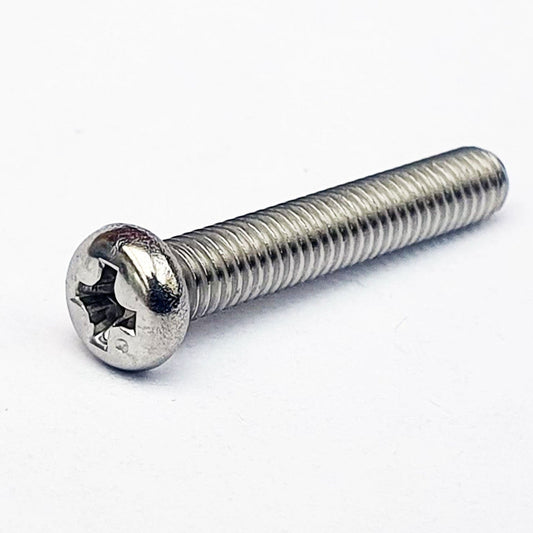

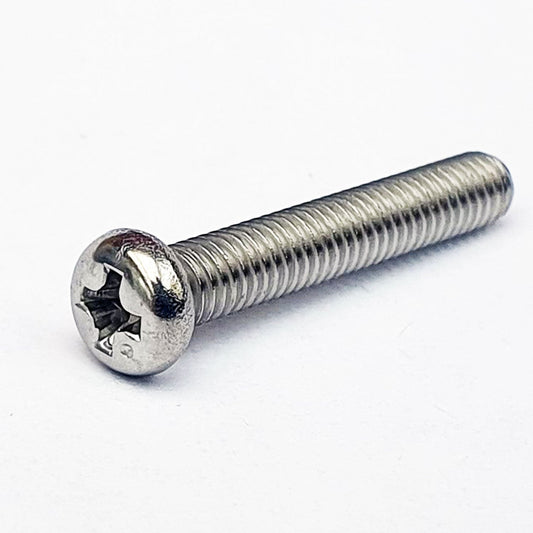

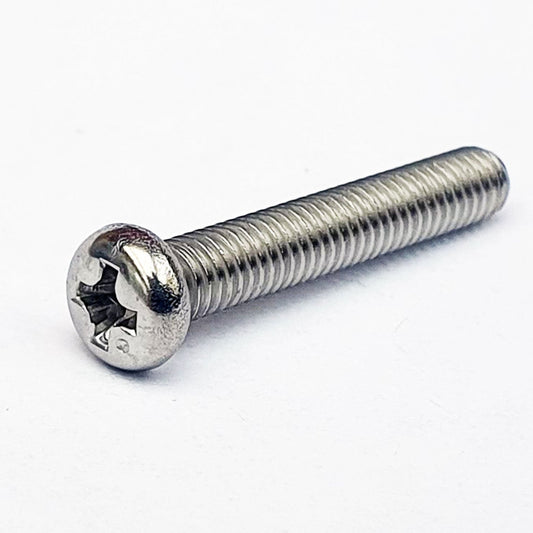

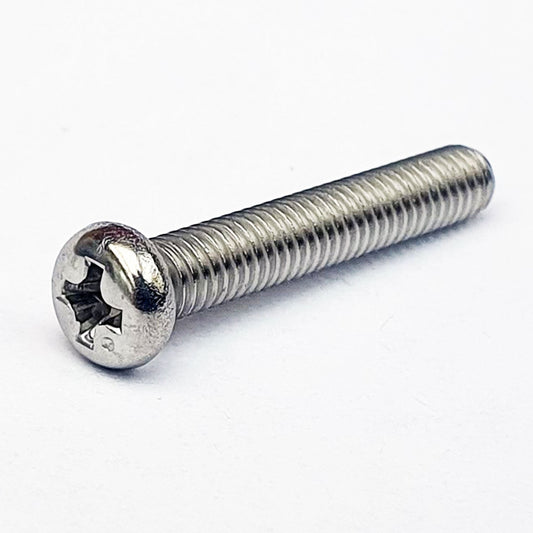

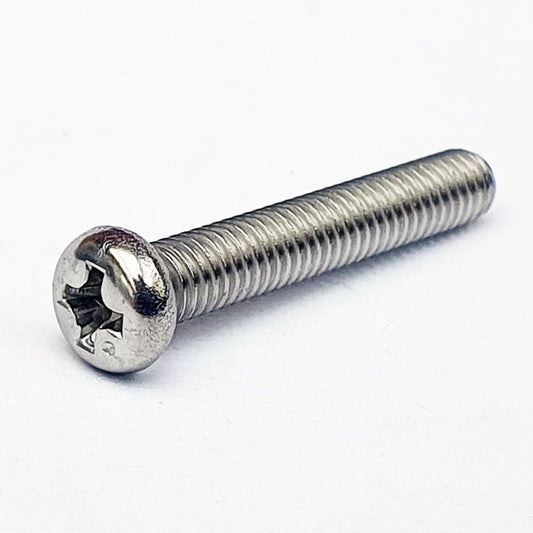

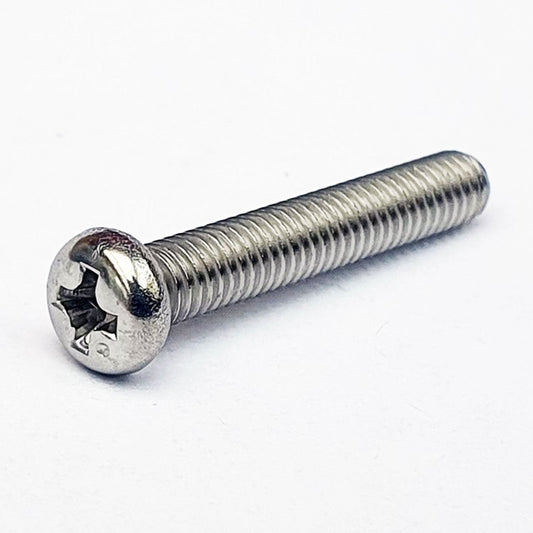

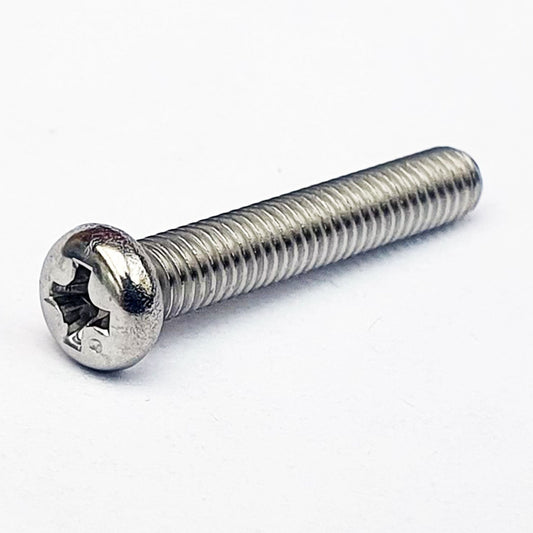

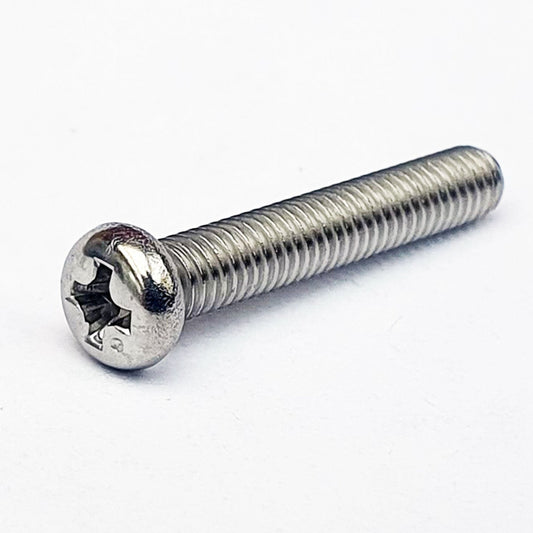

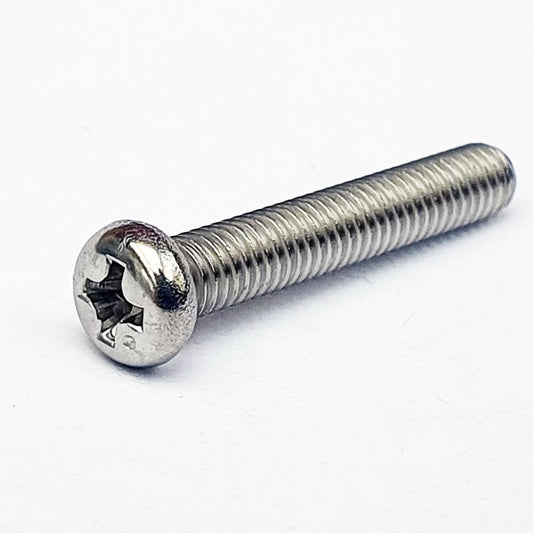

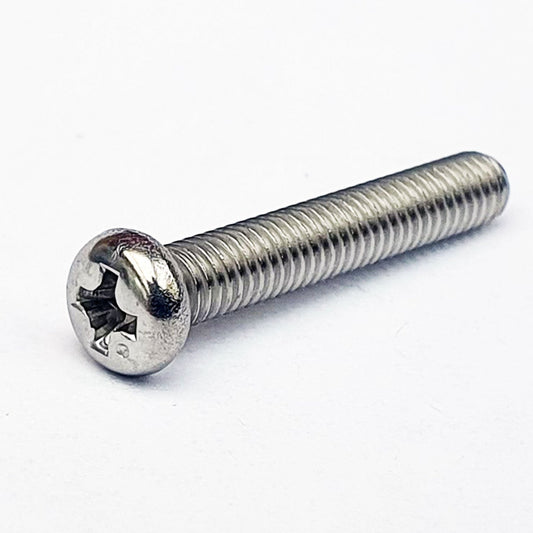

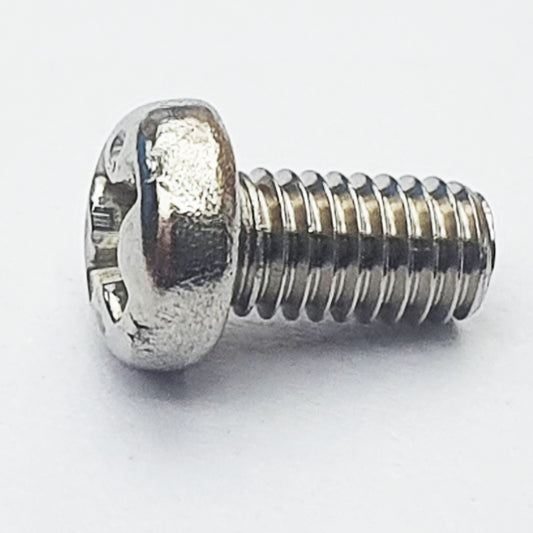

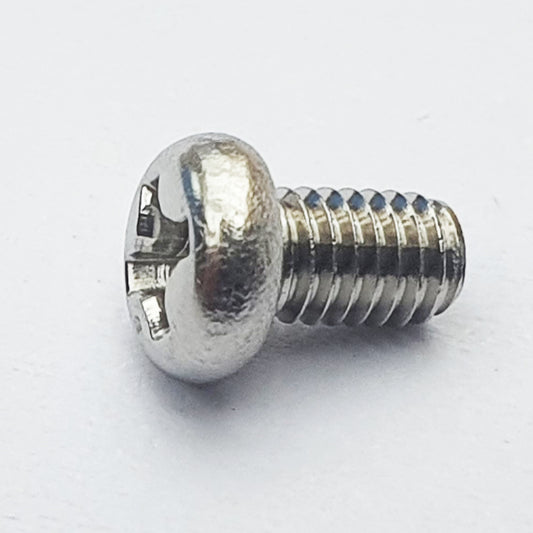

JIS Phil Pan A2 Stainless

JIS Phil Pan A2 Stainless

SUS304 (A2)
With Mo (molybdenum) added, which has good corrosion resistance.
In addition, corrosion resistance is improved by increasing the amount of Ni (8% for 304).
SUSXM7 (A2)
Stainless steel that is easier to process than SUS304.
　Cr18% + Ni9% + Cu3%
Cu (copper), a soft metal, is added to SUS304, which does not have good cold workability, to suppress work hardening and make it easier to cold work.
Corrosion resistance and strength are equivalent to SUS304.

SUS316 (A4)
Stainless steel has particularly good corrosion resistance among austenitic stainless steels.
　Cr18% + Ni12% + Mo2%

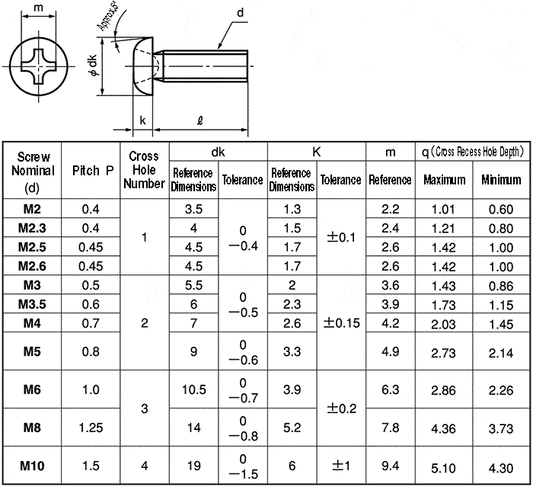

Measure from end of thread to under the head

Screw 3mm Screw Length +0/-1.0mm Thread Pitch 0.50mm Max Head OD 5.5mm

Screw 4mm Screw Length +0/-1.0mm Thread Pitch 0.70mm Max Head OD 7mm

Screw 5mm Screw Length +0/-1.0mm Thread Pitch 0.80mm Max Head OD 9mm

Screw 6mm Screw Length +0/-1.0mm Thread Pitch 1.00mm Max Head OD 10.5mm
