M6 x 50 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0650
M6 x 50 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0650
Regular price
£0.66 GBP
Regular price
Sale price
£0.66 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

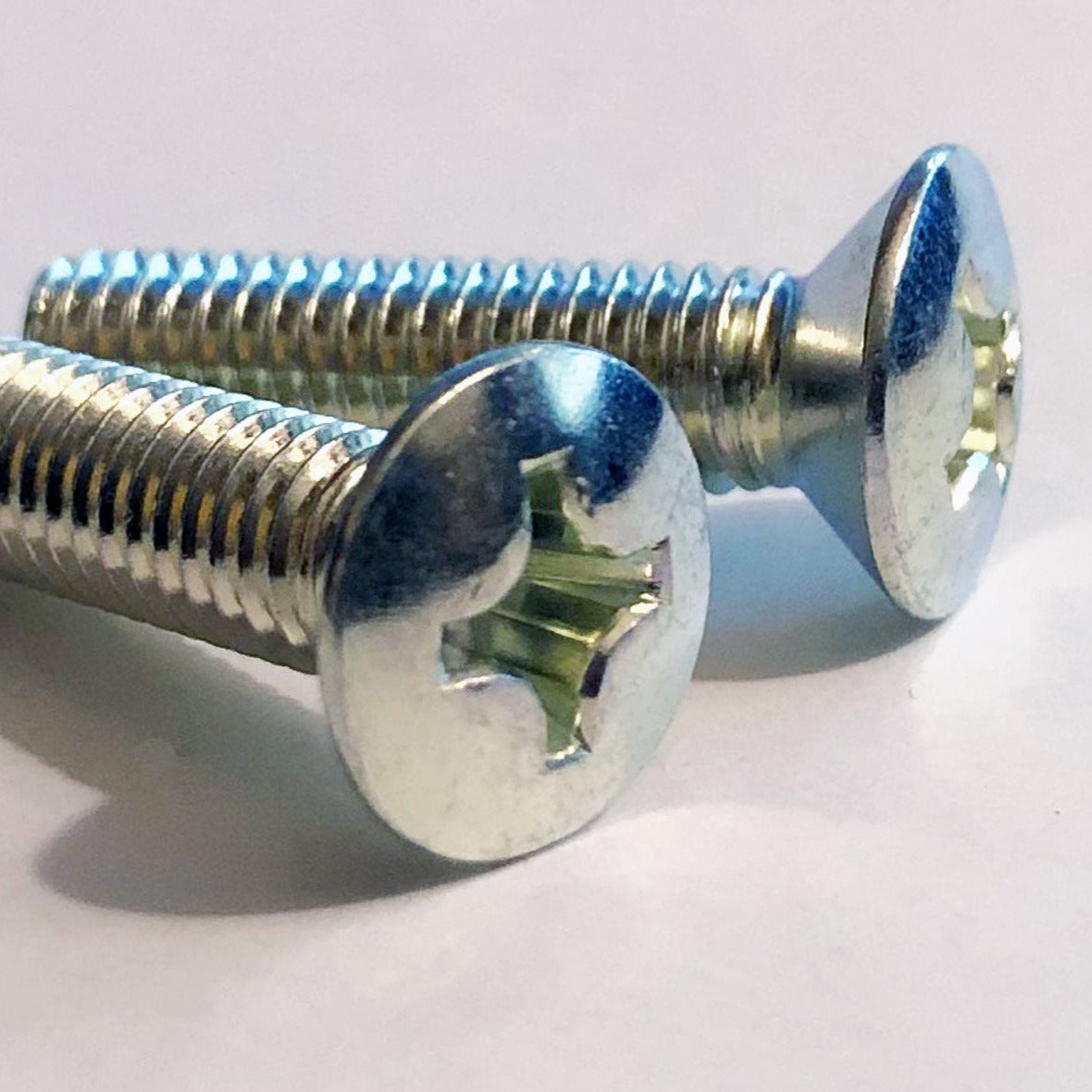

222B0650 M6x50 Round Oval Countersunk Head Trivalent White Cr-3 JIS
Screw diameter M6
Screw Length 50mm
Thread Pitch 1.00mm
Head Dia 12mm
Thread Pitch 1.00mm
Head Dia 12mm
Kawasaki part number is for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original

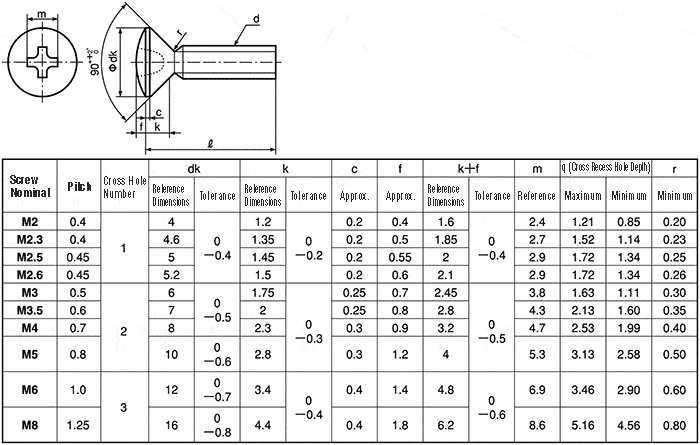

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
