M6 x 40 Round Oval Countersunk Head Stainless Steel JIS 222R0640
M6 x 40 Round Oval Countersunk Head Stainless Steel JIS 222R0640
Regular price
£0.76 GBP
Regular price
Sale price
£0.76 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

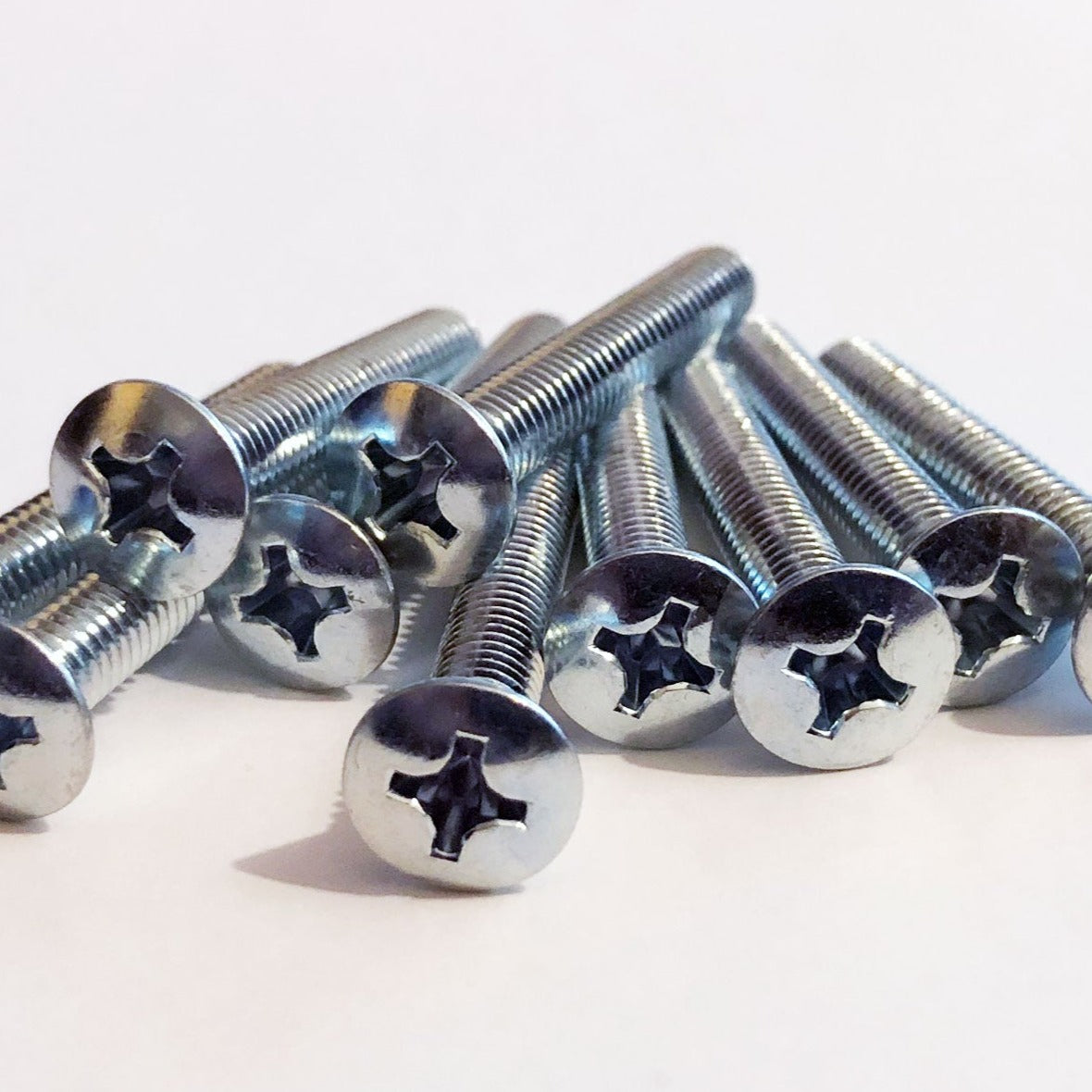

222R0640 M6x40 Round Oval Countersunk Head Stainless Steel JIS
Part numbers are for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Stainless replacement for 222E0640 222B0640
Replacement for Honda Screws 93700-06040-0B. 93700-060-400A 93700-06040-02
Kawasaki 222R0640

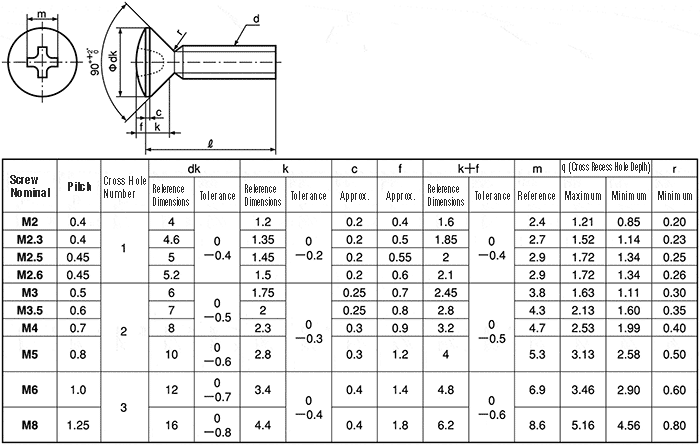

Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
