M6 x 16 Round Oval Countersunk Head Stainless Steel JIS 222R0616
M6 x 16 Round Oval Countersunk Head Stainless Steel JIS 222R0616
Regular price
£0.62 GBP
Regular price
Sale price
£0.62 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

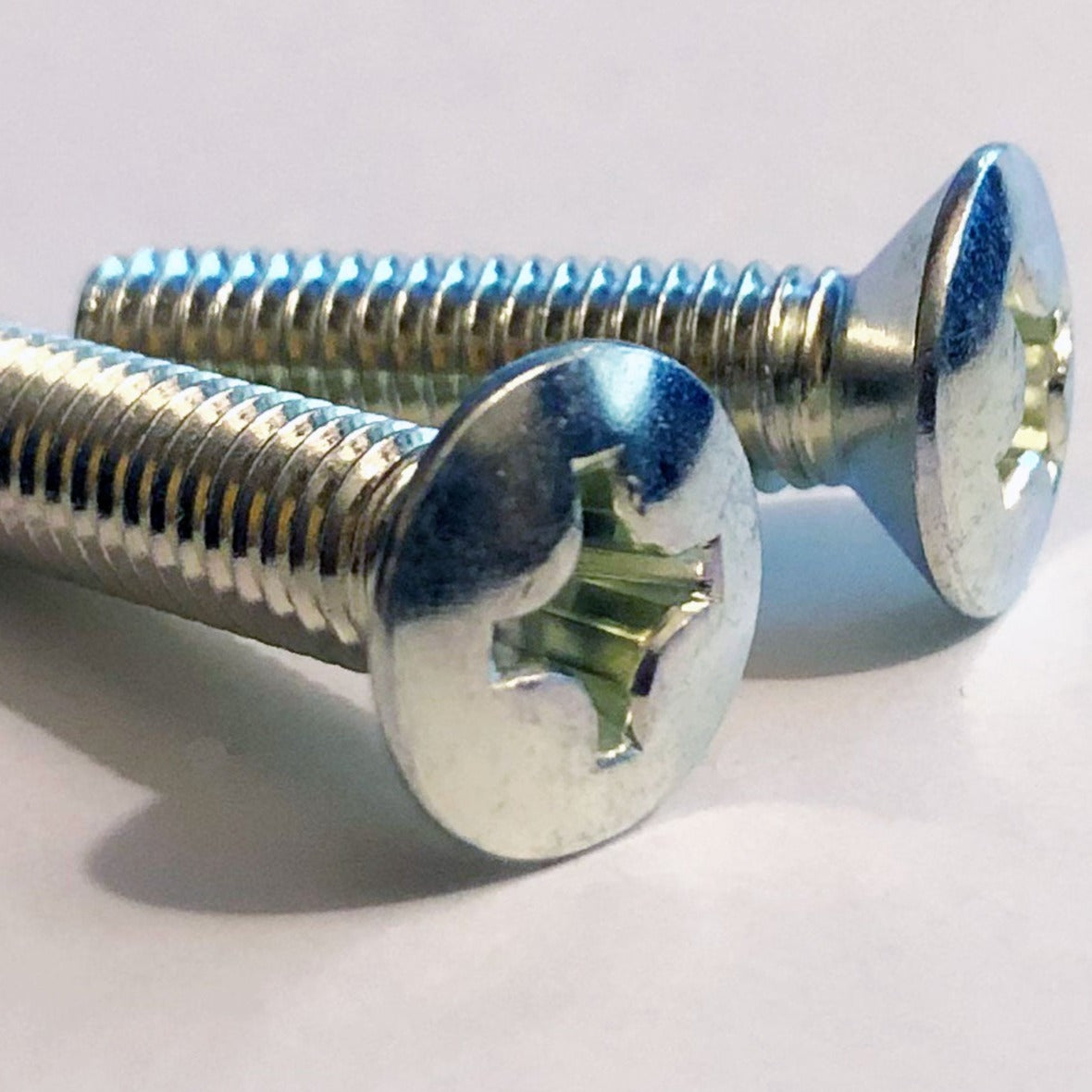

222R0616 M6x16 Round Oval Countersunk Head Stainless Steel JIS
Part numbers are for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Stainless replacement for 222E0616 222B0616
Replacement for Honda Screws 93700-06016-0B. 93700-060-160A 93700-06016-02
Kawasaki 222R0616

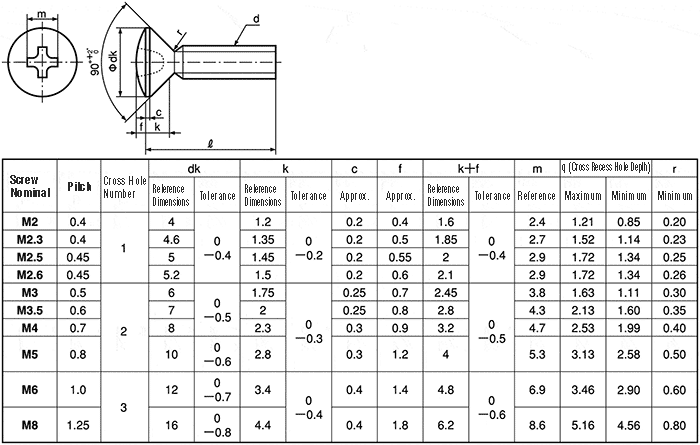

Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
