JIS-Fasteners.com

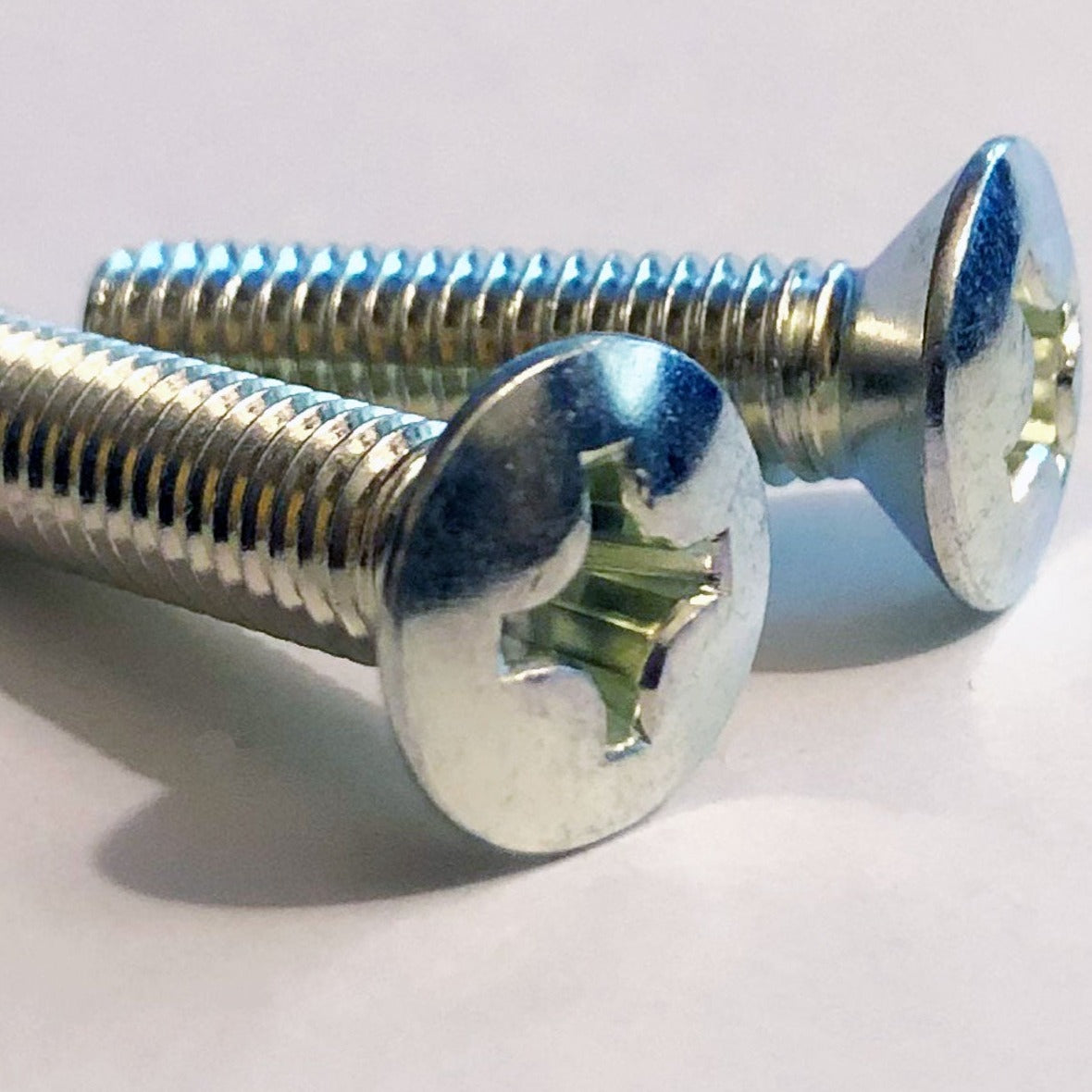

M6 x 10 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0610
M6 x 10 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0610
Regular price
£0.46 GBP
Regular price
Sale price
£0.46 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
222B0610 M6x10 Round Oval Countersunk Head Trivalent White Cr-3 JIS
Screw diameter M6
Screw Length 10mm
Thread Pitch 1.00mm
Head Dia 12mm
Thread Pitch 1.00mm
Head Dia 12mm
Kawasaki part number is for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Honda Part Number 93700-06010

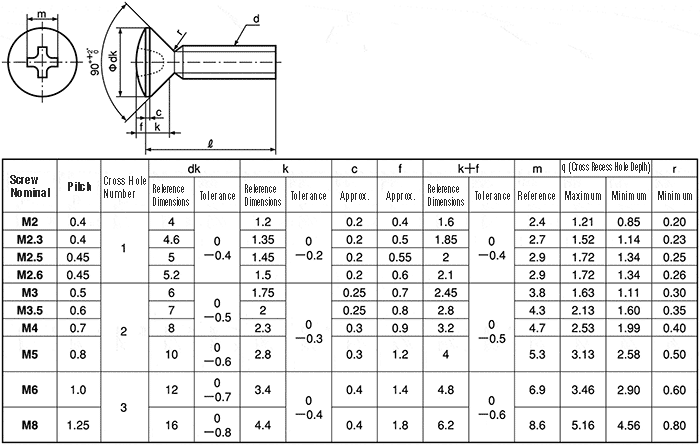

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
