M6 x 10 Round Oval Countersunk Head Stainless Steel JIS 222R0610
M6 x 10 Round Oval Countersunk Head Stainless Steel JIS 222R0610
Regular price
£0.61 GBP
Regular price
Sale price
£0.61 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

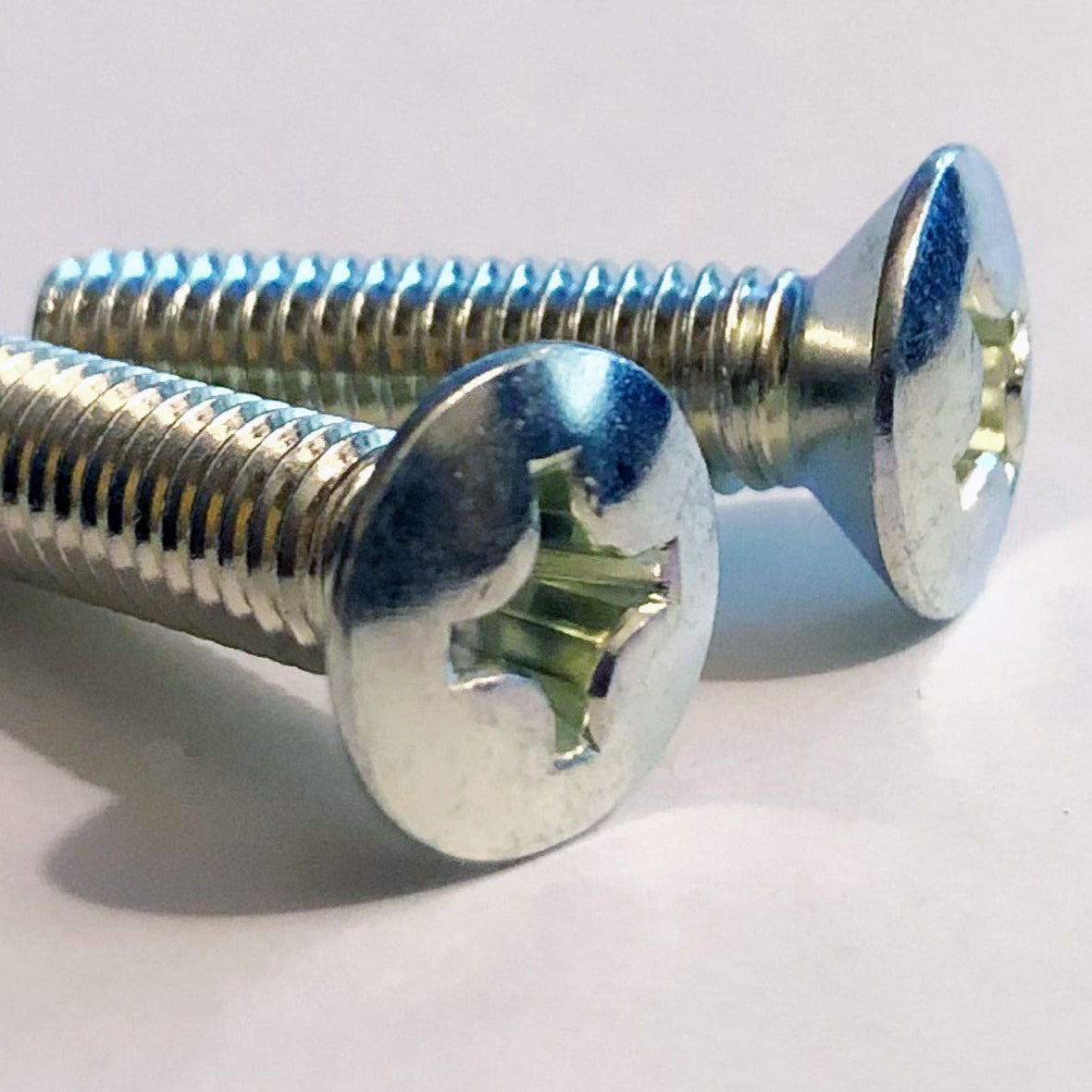

222R0610 M6x10 Round Oval Countersunk Head Stainless Steel JIS
Part numbers are for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Stainless replacement for 222E0610 222B0610
Replacement for Honda Screws 93700-06010-0B. 93700-060-100A 93700-06010-02
Kawasaki 222R0610

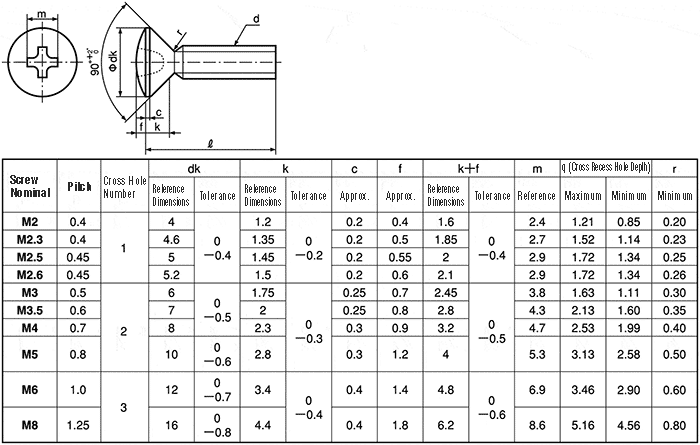

Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Technical Data
Screw diameter M6
Machine screw Thread Pitch 1.00
No. 3 Phillips Drive
Head Diameter 12
a Tolerance -0.7
Head Thickness 4.8
b Tolerance +/-0.6
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
