M5 x 25 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0525
M5 x 25 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0525
Regular price
£0.50 GBP
Regular price
Sale price
£0.50 GBP
Unit price
/
per

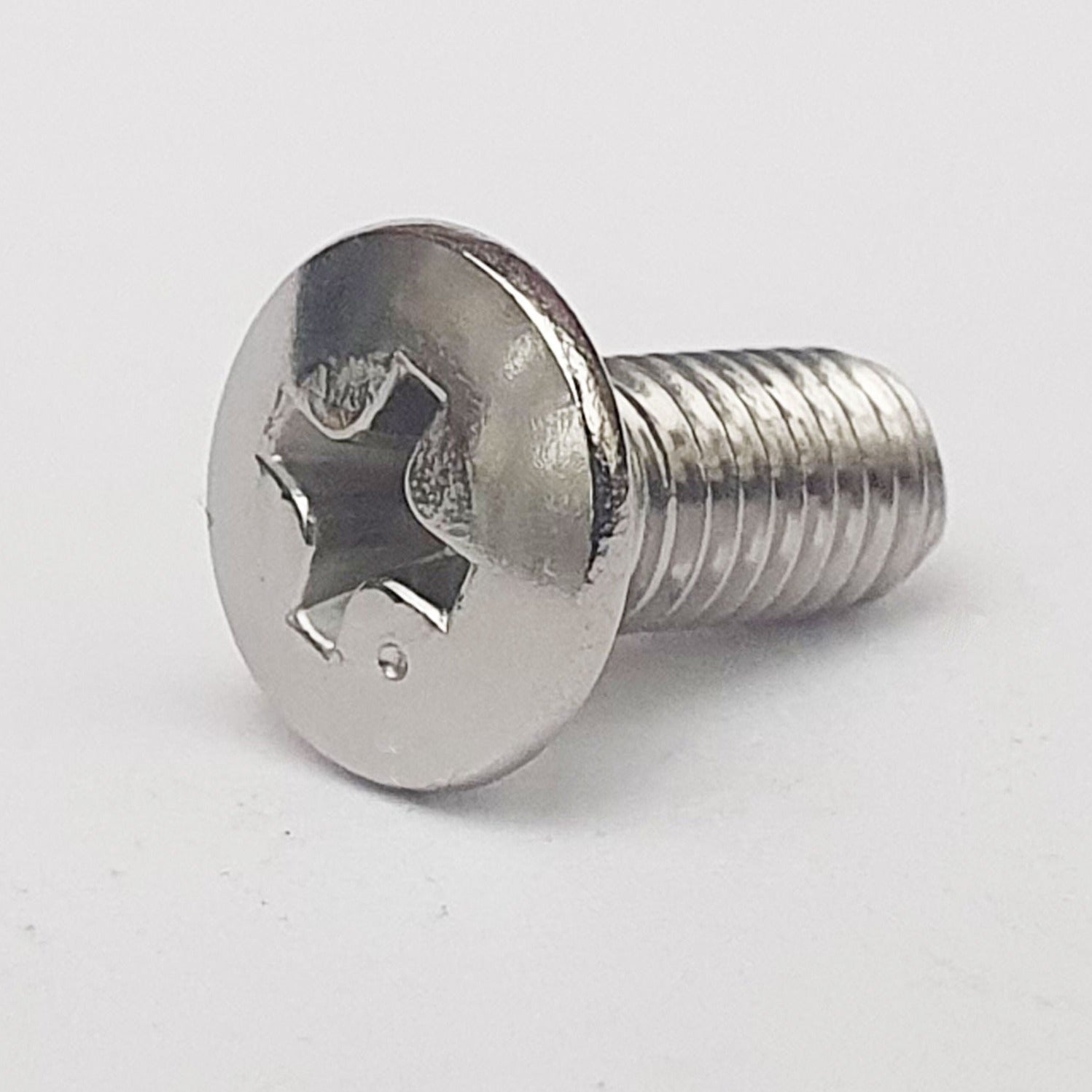

222B0526 M5x25 Round Oval Countersunk Head Trivalent White Cr-3 JIS
Screw diameter M5
Screw Length 25mm
Thread Pitch 0.80mm
Head Dia 10mm
Thread Pitch 0.80mm
Head Dia 10mm
Kawasaki part number is for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original

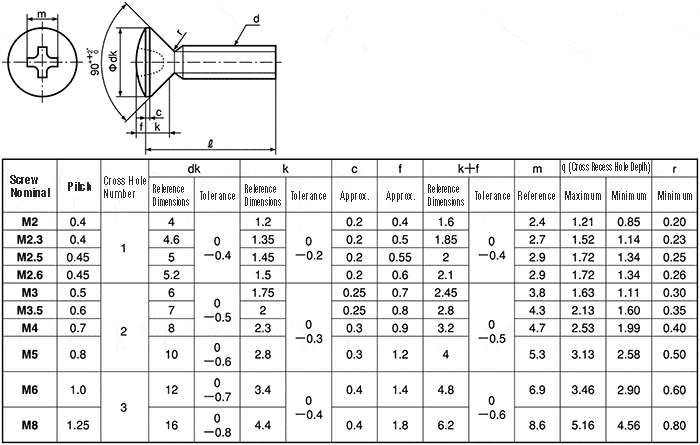

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
