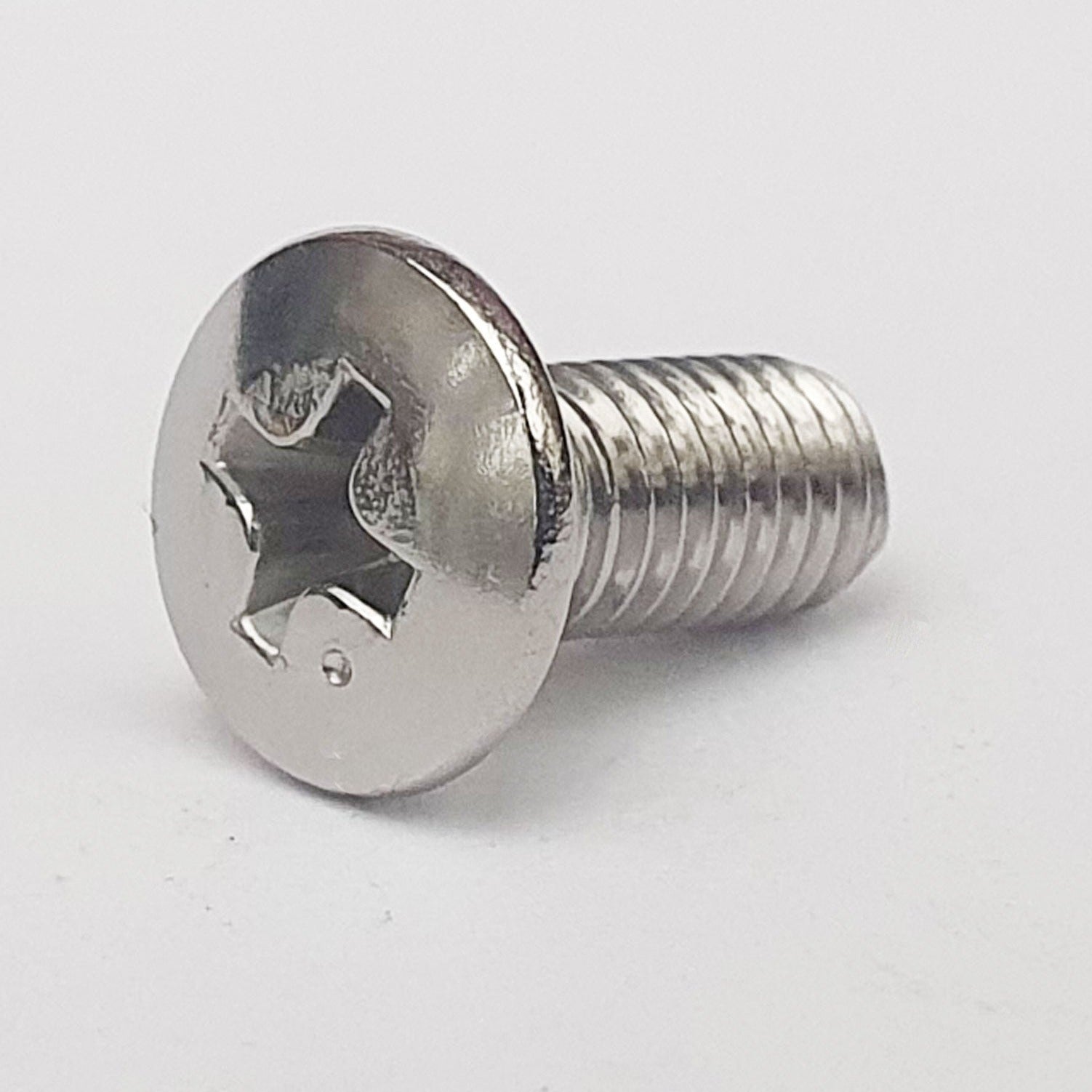

M5 x 12 Round Oval Countersunk Head Stainless Steel JIS 222R0512
M5 x 12 Round Oval Countersunk Head Stainless Steel JIS 222R0512
Regular price
£0.54 GBP
Regular price
Sale price
£0.54 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
222R0512 M5x12 Round Oval Countersunk Head Stainless Steel JIS
Part numbers are for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Stainless replacement for 222E0512 222B0512
Replacement for Honda Screws 93700-05012-0B. 93700-050-120A 93700-05012-02
Kawasaki 222R0512

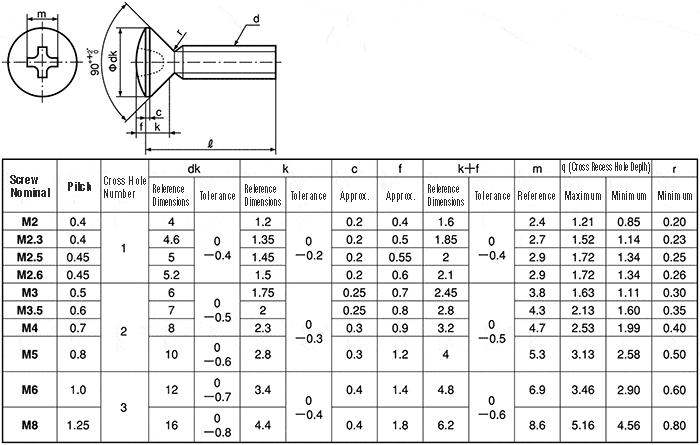

Technical Data
Screw diameter M5
Machine screw Thread Pitch 0.8
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 10
dk Tolerance -0.6
Head Thickness k 2.8
k Tolerance +/-0.30
Technical Data
Screw diameter M5
Machine screw Thread Pitch 0.8
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 10
dk Tolerance -0.6
Head Thickness k 2.8
k Tolerance +/-0.30
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
