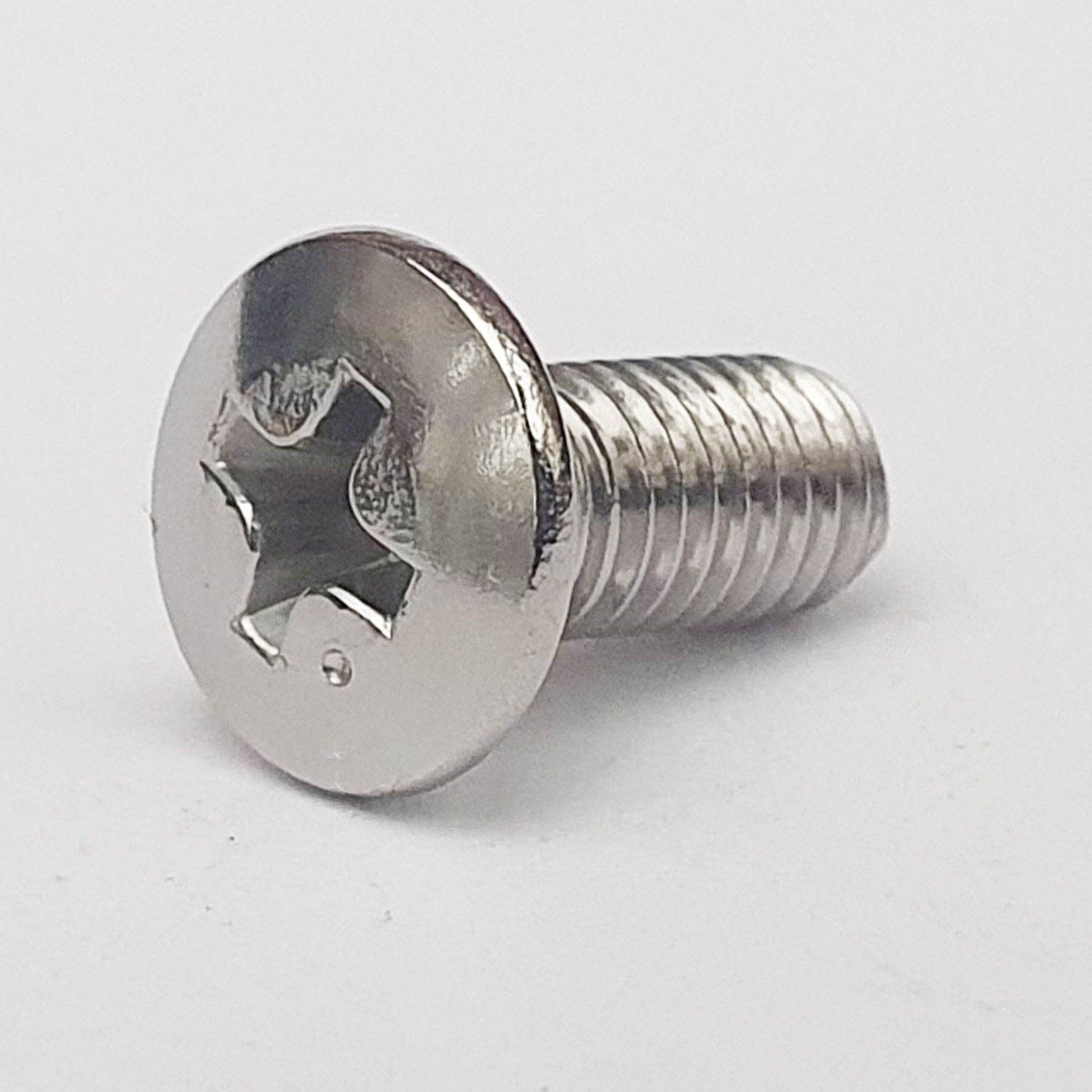

M5 x 10 Round Oval Countersunk Head Stainless Steel JIS 222R0510
M5 x 10 Round Oval Countersunk Head Stainless Steel JIS 222R0510
Regular price
£0.52 GBP
Regular price
Sale price
£0.52 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
222R0510 M5x10 Round Oval Countersunk Head Stainless Steel JIS
Part numbers are for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original
Stainless replacement for 222E0510 222B0510
Replacement for Honda Screws 93700-05010-0B. 93700-050-1 00A 93700-05010-02
Kawasaki 222R0510

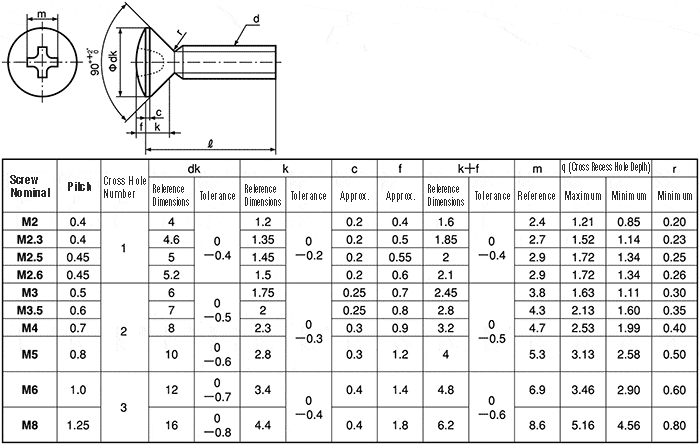

Technical Data
Screw diameter M5
Machine screw Thread Pitch 0.8
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 10
dk Tolerance -0.6
Head Thickness k 2.8
k Tolerance +/-0.30
Technical Data
Screw diameter M5
Machine screw Thread Pitch 0.8
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 10
dk Tolerance -0.6
Head Thickness k 2.8
k Tolerance +/-0.30
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
