M4 x 8 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0408
M4 x 8 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0408
Regular price
£0.28 GBP
Regular price
Sale price
£0.28 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

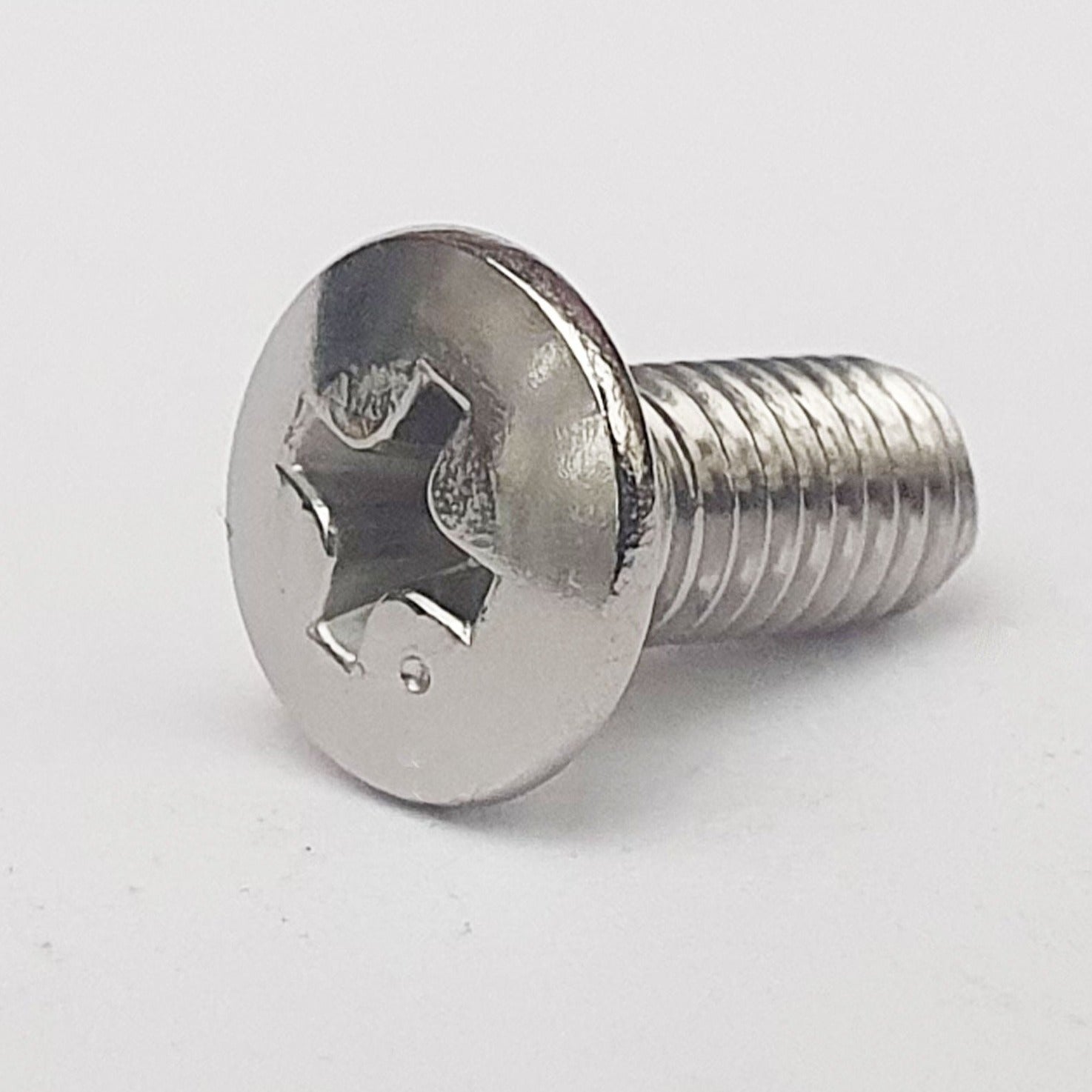

22B0408 M4x8 Round Oval Countersunk Head Trivalent White Cr-3
Screw diameter M4
Screw Length 8mm
Thread Pitch 0.70mm
Head Dia 8mm
Thread Pitch 0.70mm
Head Dia 8mm
Kawasaki part number is for reference only
This is a Genuine JIS screw from our supplier in Japan
Ideal replacement to the original

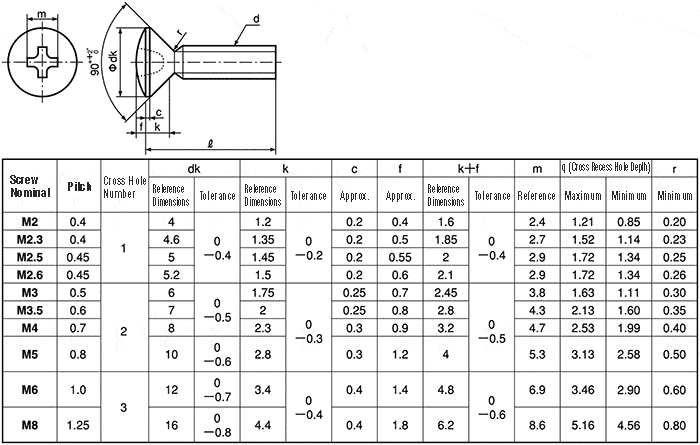

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
