M4 x 12 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0412
M4 x 12 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0412
Regular price
£0.32 GBP
Regular price
Sale price
£0.32 GBP
Unit price
/
per

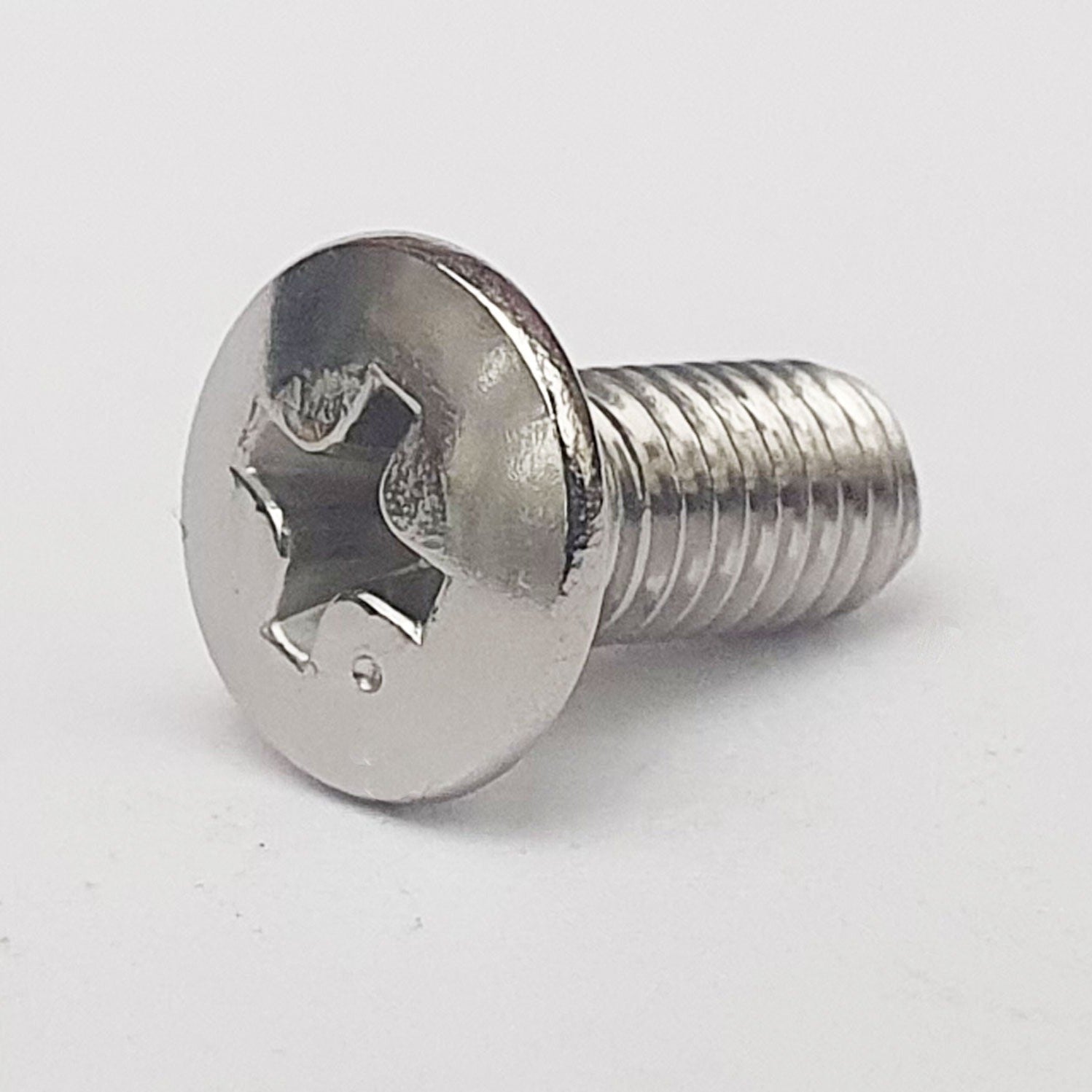

222B0412 M4x12 Round Oval Countersunk Head Trivalent White Cr-3 JIS
Screw diameter M4
Screw Length 12mm
Thread Pitch 0.70mm
Head Dia 8mm
Thread Pitch 0.70mm
Head Dia 8mm
Kawasaki part number is for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original

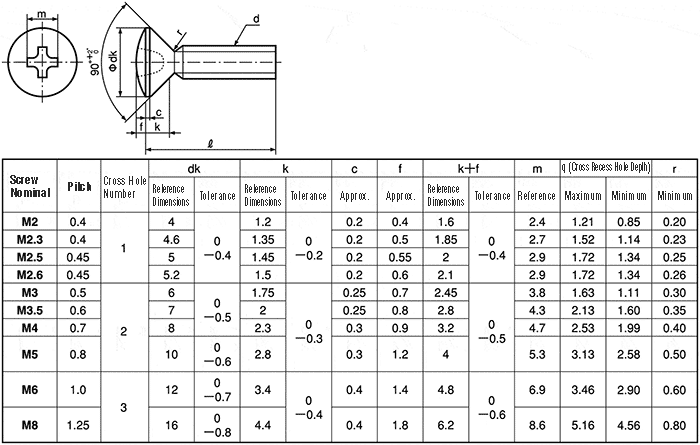

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
