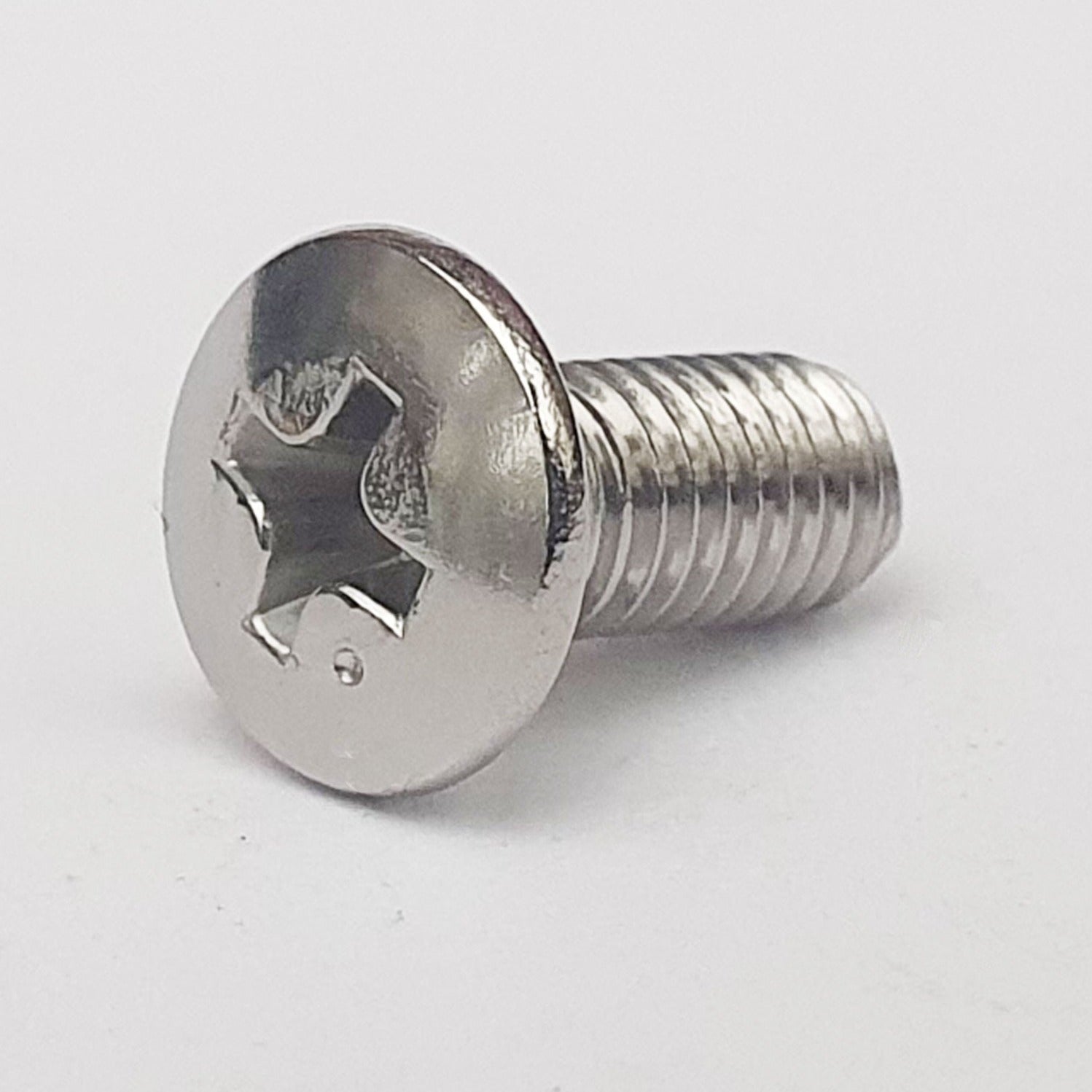

M4 x 12 Round Oval Countersunk Head Stainless Steel JIS 222R0412
M4 x 12 Round Oval Countersunk Head Stainless Steel JIS 222R0412
Regular price
£0.44 GBP
Regular price
Sale price
£0.44 GBP
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
222R0412 M4x12 Round Oval Countersunk Head Stainless Steel JIS
Replacement for Honda Screws 93700-04012-0B
Kawasaki 222R0412

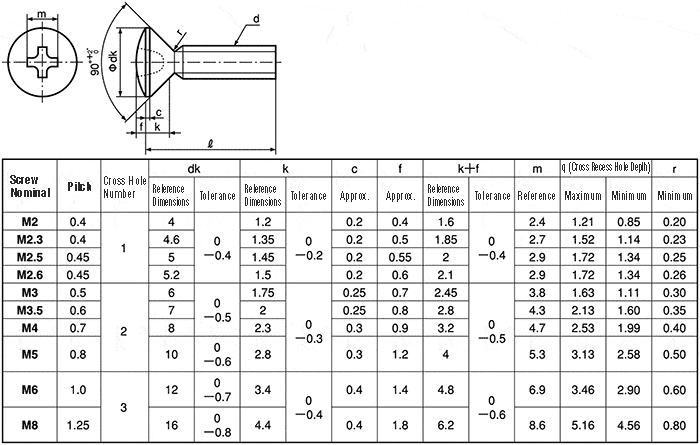

Technical Data
Screw diameter M4
Machine screw Thread Pitch 0.7
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 8
dk Tolerance -0.5
Head Thickness k 2.3
k Tolerance +/-0.30
Technical Data
Screw diameter M4
Machine screw Thread Pitch 0.7
Length Tolerance MM +0.00/-1.00
No. 2 Phillips Drive
Head Diameter a 8
dk Tolerance -0.5
Head Thickness k 2.3
k Tolerance +/-0.30
Grade 304 Stainless
Part numbers are for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
