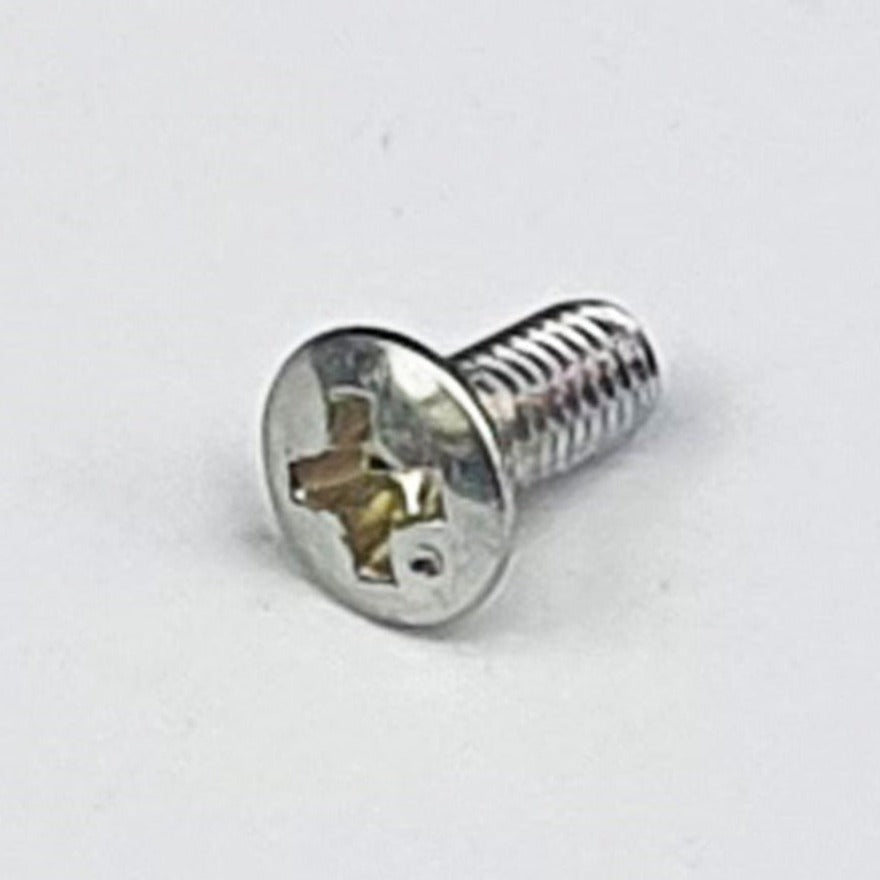

M3 x 32 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0332
M3 x 32 Round Oval Countersunk Head Trivalent White Cr-3 JIS 222B0332
Regular price
£0.45 GBP
Regular price
Sale price
£0.45 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
222B0332 M3x32 Round Oval Countersunk Head Trivalent White Cr-3 JIS
Ideal for the Butterfly valves on carbs
Screw diameter M3
Screw Length 32mm
Thread Pitch 0.50mm
Head Dia 6mm
Kawasaki part number is for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
Screw Length 32mm
Thread Pitch 0.50mm
Head Dia 6mm
Kawasaki part number is for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
Yamaha part number 183-83333-71

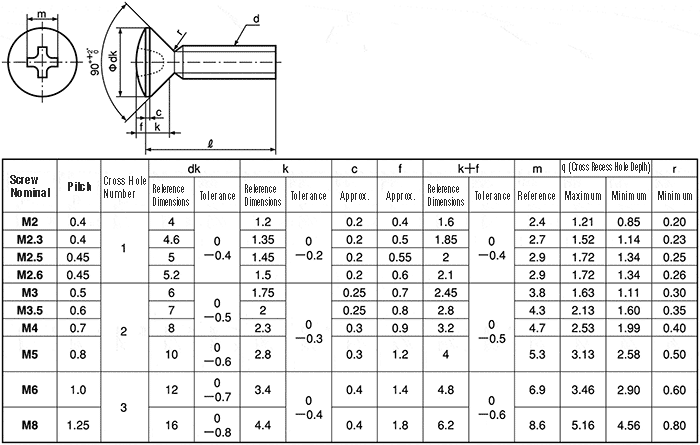

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
