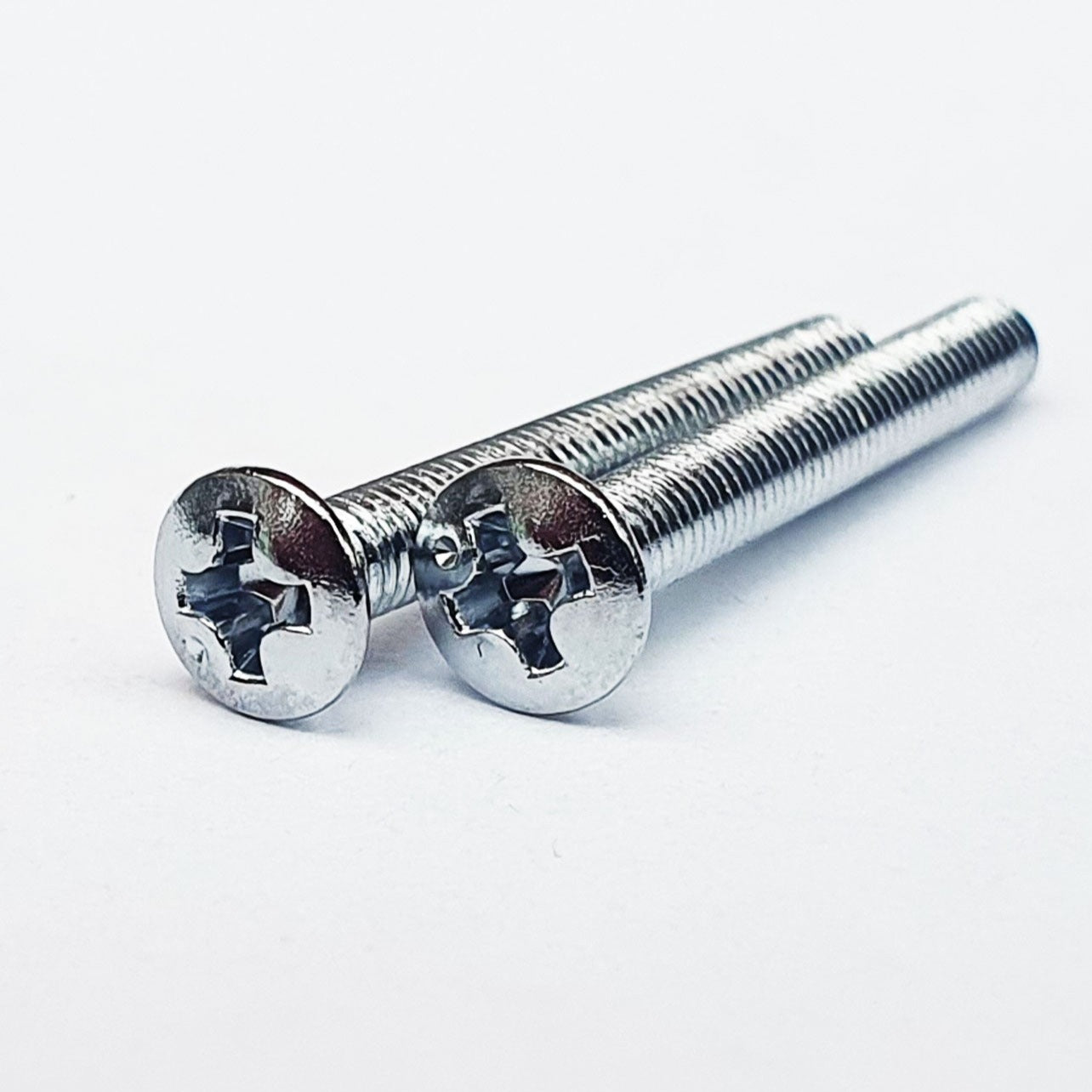

M3 x 25 Round Oval Countersunk Head Bright Chrome JIS 93700-0325-OB
M3 x 25 Round Oval Countersunk Head Bright Chrome JIS 93700-0325-OB
Regular price
£0.60 GBP
Regular price
Sale price
£0.60 GBP
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
93700-0325-OB M3x25 Round Oval Countersunk Head Bright Chrome JIS
Used on Honda of indicators
Honda part number is for reference only, this is a Genuine JIS screw from our supplier in Japan. Ideal replacement to the original
Part number 93700-03025-0B @ £1.27 from Honda
Screw diameter M3
Screw Length 25mm
Thread Pitch 0.50mm
Head Dia 6mm
Screw Length 25mm
Thread Pitch 0.50mm
Head Dia 6mm

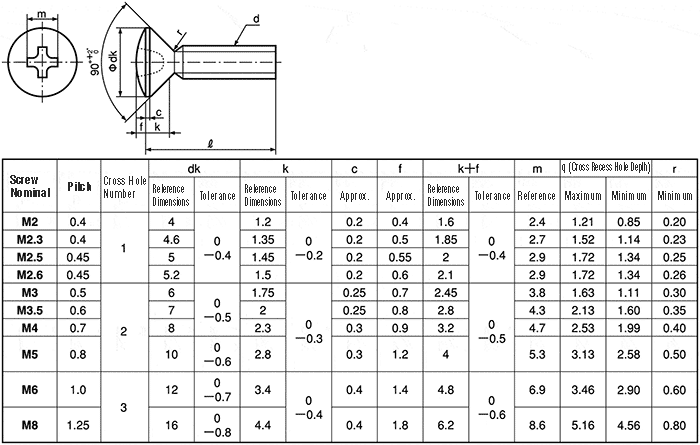

How To Measure Oval Countersunk Screws.
Measurement is taken from the end of the thread to the top of the countersunk section.
Not including the oval section …see diagram
