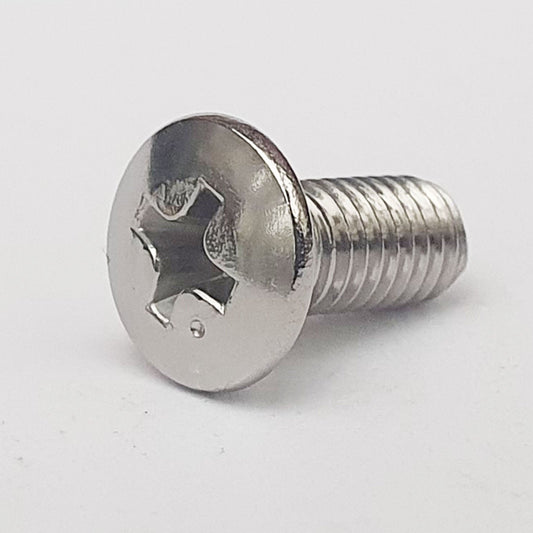

Collection: JIS Round Oval Countersunk Head Trivalent White Cr-3

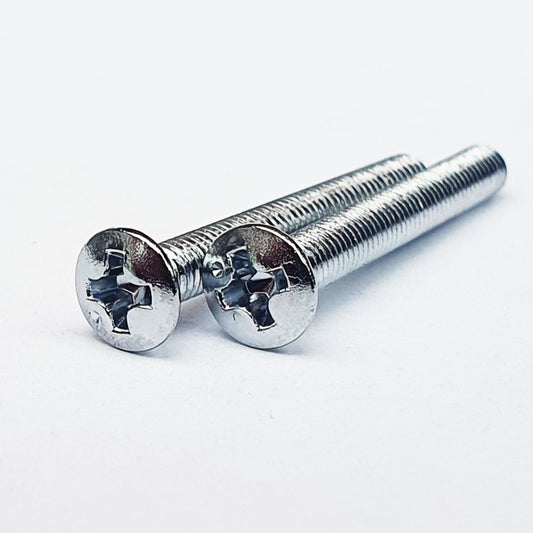

JIS Phil Pan Round Oval Head Countersunk Screws

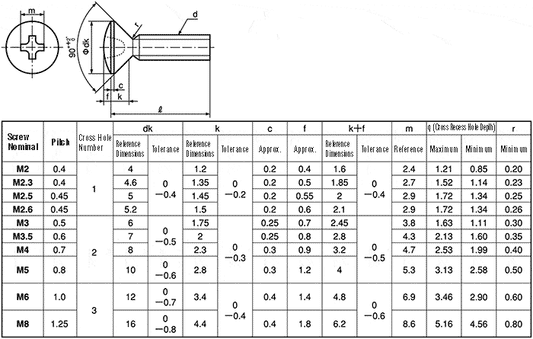

Measure from end of thread to the top of countersunk do not include the oval

Screw 3mm Pitch 0.50mm Max Head OD 6mm+0/-0.5 Head Depth  1.75mm +0/-0.3

Screw 4mm Pitch 0.70mm Max Head OD 8mm+0/-0.5 Head Depth  2.30mm +0/-0.3

Screw 5mm Pitch 0.80mm Max Head OD 10mm+0/-0.6 Head Depth  2.80mm +0/-0.3

Screw 6mm Pitch 1.00mm Max Head OD 12mm+0/-0.7 Head Depth  3.40mm +0/-0.4
