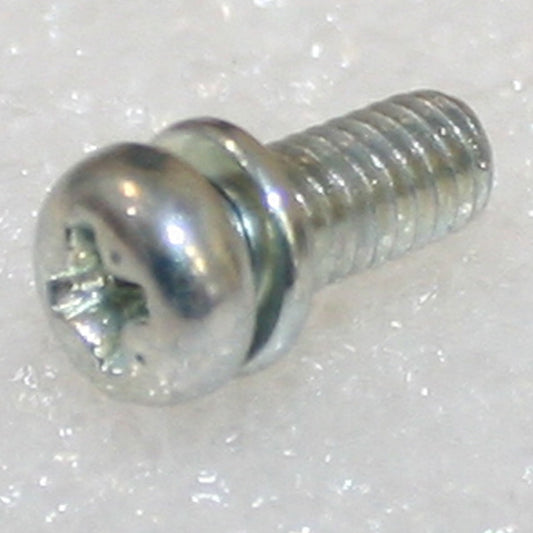

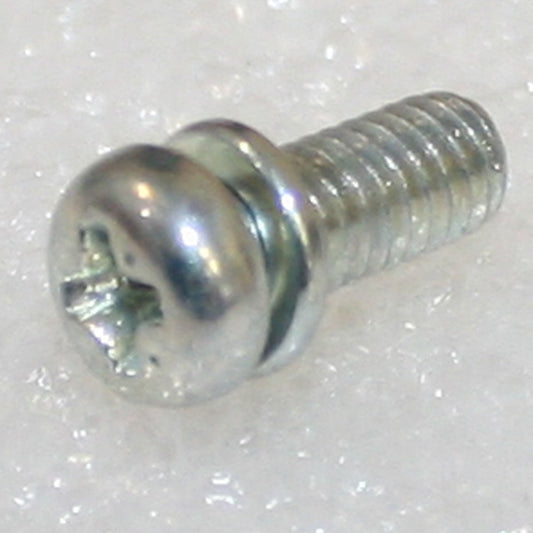

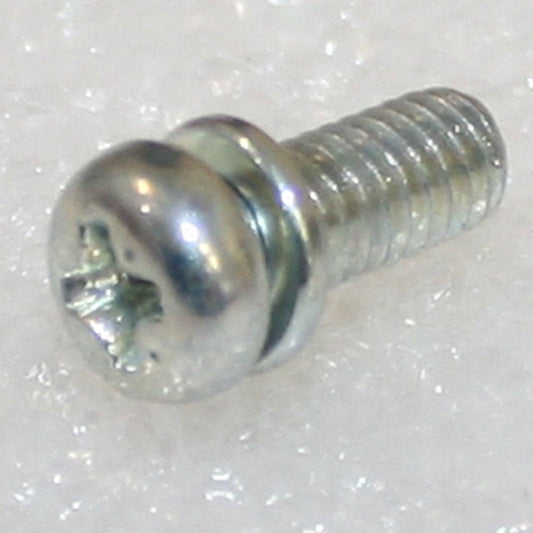

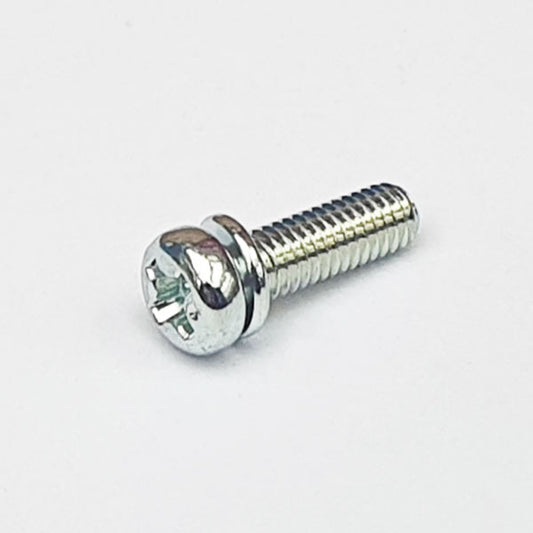

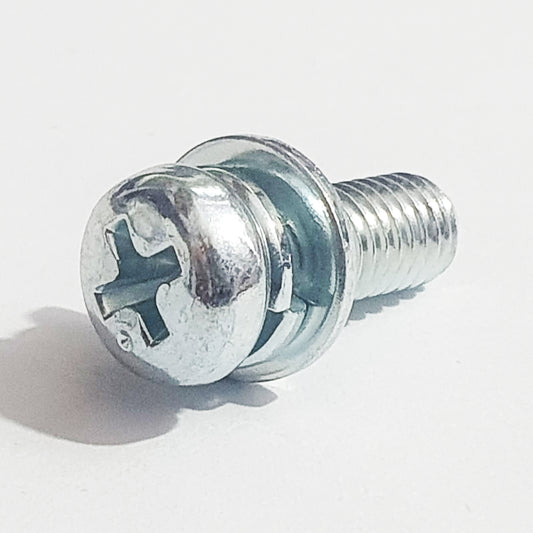

JIS Phil Pan w/Spring Washer Trivalent White Cr-3

JIS Phil Pan w/Spring Washer Trivalent White Cr-3

Encapsulated spring washer fitted to the screw to save time on assembly Spring washer is used to prevent the screw from backing out ( Loosening)

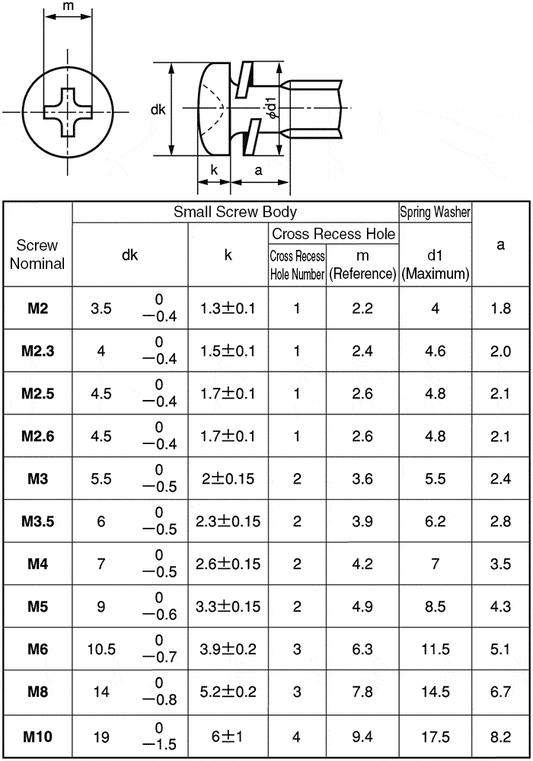

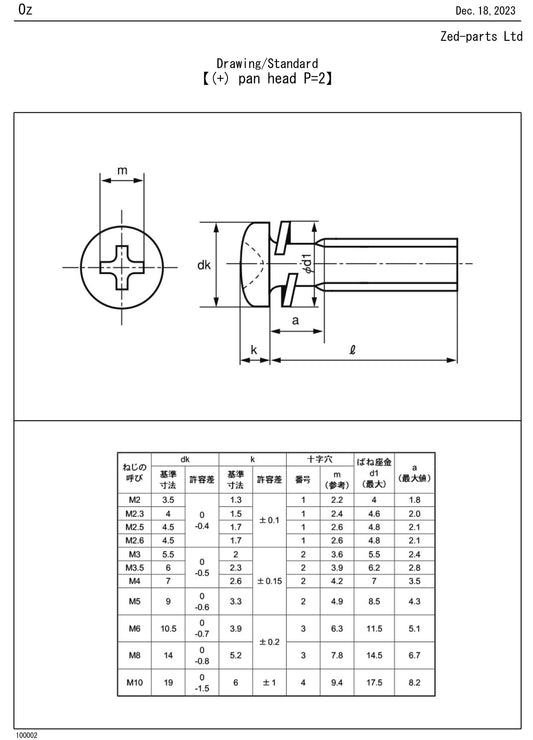

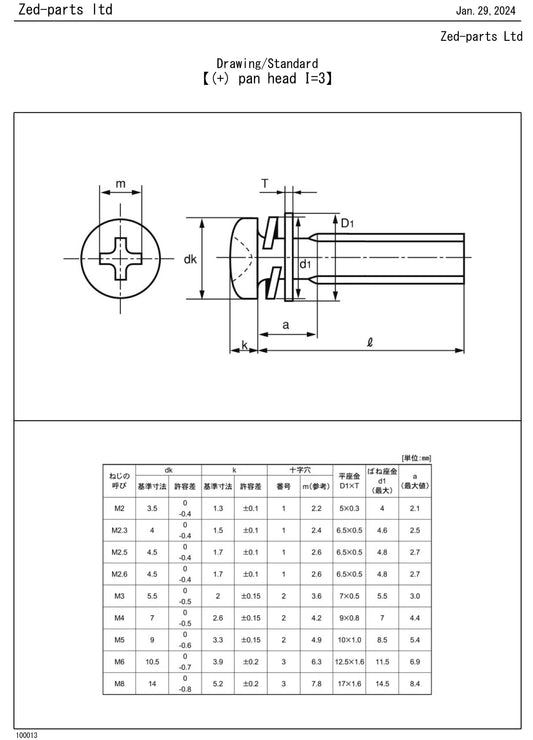

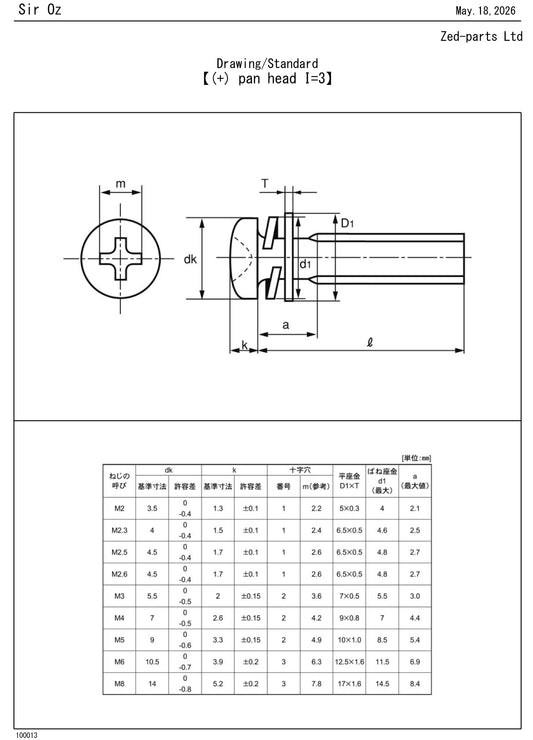

Measure from end of thread to under the head including spring washer

Screw 3mm Screw Length +0/-1.0mm Thread Pitch 0.50mm Max Head OD 5.5mm

Screw 4mm Screw Length +0/-1.0mm Thread Pitch 0.70mm Max Head OD 7mm

Screw 5mm Screw Length +0/-1.0mm Thread Pitch 0.80mm Max Head OD 9mm

Screw 6mm Screw Length +0/-1.0mm Thread Pitch 1.00mm Max Head OD 10.5mm
